| Marchio: | VIIPLUS.COM |
| Numero di modello: | Self-lubricating cast bronze alloy bearing |
One of the key features of the Oilless Bushes is their high-quality bronze bushing material. This bronze bush material provides excellent wear resistance and self-lubricating properties, ensuring smooth operation and extended service life. The bronze plugged graphite wear plate material further enhances the performance of these bushes, making them suitable for heavy-duty applications where wear and friction are major concerns.
The Oilless Bushes come with self-lubricating custom wear plates and slide plates, which are essential components for ensuring optimal performance and reliability. These parts are carefully crafted to meet the specific requirements of various applications, providing a perfect fit and seamless operation. Whether used in machinery, equipment, or automotive components, the Oilless Bushes deliver superior performance and longevity.
Bronze bushes are widely recognized for their exceptional properties, making them a popular choice in the industry. The Oilless Bushes capitalize on the benefits of bronze bushing material to offer unmatched performance and reliability. With solid lubricating bearings and bronze plugged graphite wear plate material, these bushes ensure smooth and efficient operation even in the most demanding conditions.
In conclusion, the Oilless Bushes are a reliable and high-performance solution for applications requiring maintenance-free operation and superior wear resistance. With their solid lubricating bearings, bronze bushing material, and custom wear plates, these bushes are designed to deliver exceptional performance and longevity. Invest in Oilless Bushes today and experience the difference in quality and reliability for your industrial and mechanical applications.
Oilless bushes from VIIPLUS.COM are versatile products that can be used in a variety of applications due to their self-lubricating properties and durable construction. These bronze bushes are available in different alloys such as CuAl10Ni5Fe4, CuAl11Ni5Fe5, ZCuZn25AI6Fe3Mn3, ZCuSn6Zn6Pb3, C95400 Aluminum Bronze, C86300 Manganese Bronze, C95500 Aluminum Bronze, and C63000 Nickel Aluminum Bronze, offering a wide range of options to suit specific needs.
These oilless bushes are suitable for various product application occasions and scenarios, making them a reliable choice for different industries. Whether you need bronze bushes for high load and corrosion resistance, marine propeller systems, seawater pumps, or wear plates and bushings, VIIPLUS.COM has the products to meet your requirements. The self-lubricating cast bronze alloy bearings are designed for maintenance-free operation, providing solid lubrication for smooth performance.
Manufactured in CHINA, these bronze bearings are of high quality and can be used in demanding environments. The oilless bushes are ideal for applications where traditional lubrication methods are not feasible or practical. With VIIPLUS.COM's oilless bushes, you can expect reliable and long-lasting performance.
Whether you are looking for bronze bushes for industrial equipment, marine applications, or other machinery, these solid lubricating bearings are a dependable choice. The FOB ShangHai option makes it convenient to access these high-quality bronze bushes from anywhere in the world.
In summary, VIIPLUS.COM's oilless bushes are the perfect solution for those in need of bronze bearings that offer maintenance-free operation, high durability, and efficient performance. Choose these bronze bushes for your next project and experience the reliability and quality they provide.
Unit: mm
| Standard No. | d | L | d1 | d2 | L1 | L2 | L3 | r |
| 9834-789 | 25 | 32 | 32 | 40 | 22 | 6,3 | 4 | 3 |
| 9834-799 | 25 | 40 | 32 | 40 | 30 | 4 | 3 | |
| 9834-797 | 25 | 40 | 32 | 40 | 32 | 4 | 3 | |
| 9834-796 | 24 | 40 | 32 | 40 | 32 | 4 | 3 | |
| 9834-800 | 32 | 50 | 40 | 50 | 40 | 4 | 3 | |
| 9834-801 | 40 | 63 | 50 | 63 | 50 | 5 | 3 | |
| 9834-802 | 50 | 71 | 63 | 71 | 56 | 6,3 | 5 | |
| 9834-803 | 63 | 80 | 80 | 90 | 63 | 10 | 8 | 6 |
| 9834-804 | 80 | 100 | 100 | 112 | 80 | 10 | 8 | |
| 9834-808 | 100 | 125 | 125 | 140 | 100 | 12,5 | 10 | |
| 9834-805 | 100 | 125 | 125 | 140 | 106 | 12,5 | 10 | |
| 9834-806 | 125 | 160 | 160 | 180 | 132 | 16 | 12 | |
| 9834-807 | 160 | 200 | 200 | 220 | 170 | 16 | 18 |
Product Customization Services:
Brand Name: VIIPLUS.COM
Model Number: Self-lubricating cast bronze alloy bearing
Place of Origin: CHINA
Fob: ShangHai
Alloy: CuAl10Ni5Fe4, CuAl11Ni5Fe5, ZCuZn25AI6Fe3Mn3 Or ZCuSn6Zn6Pb3, C95400 Aluminum Bronze Bush, C86300 Manganese Bronze Wear Plates And Bushings , C95500 Aluminum Bronze Self-lubricating Bushes For Marine Propeller Systems And Seawater Pumps C63000 Nickel Aluminum Bronze Oilless Bush Bearing For High Load And Corrosion Resistance
Description: Solid Lubricating Bearings
Hight: Bronze Bushing
Parts: Self-Lubricating Custom Wear Plate, Slide Plate
Keywords: bronze bearing, self-lubricating bearing
In high-precision industrial machinery, guide ejector bushings play a crucial role in ensuring smooth, reliable motion of ejector systems. Traditional bushings often rely on external lubrication, which can lead to inconsistent performance, increased wear, and frequent maintenance.

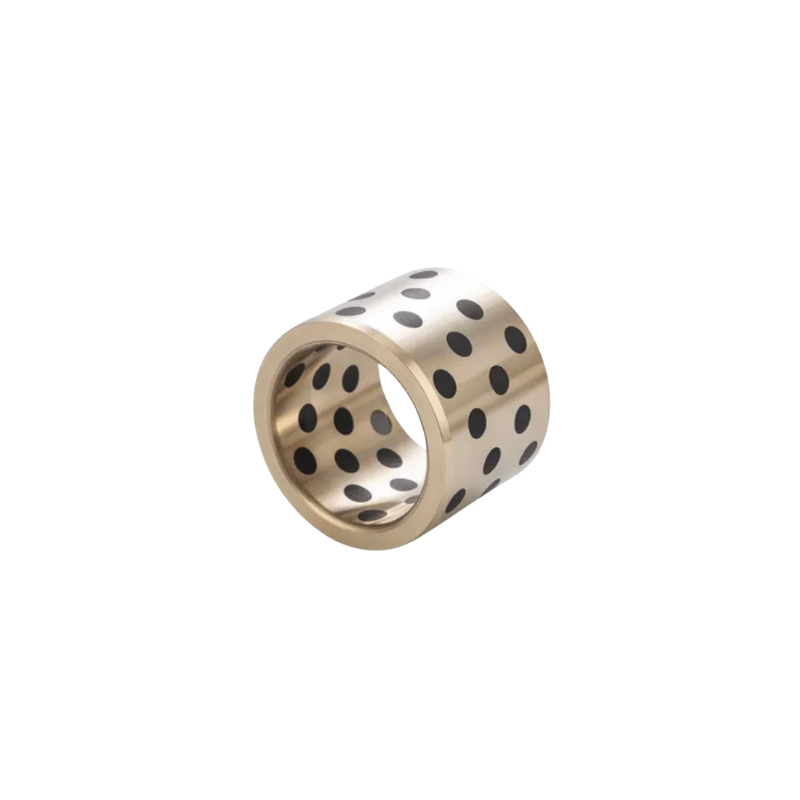

JOSG solid self-lubricating guide ejector bushings combine a high-strength brass alloy base with embedded graphite plugs, providing continuous lubrication, high wear resistance, and long operational life. This article explores the material composition, working principle, advantages, and industrial applications of JOSG bushings using structured data, comparative tables, and technical insights.
Guide ejector bushings are cylindrical components designed to guide linear motion of ejector pins or rods in injection molding, die casting, and pressing machinery.
JOSG bushings distinguish themselves through:
Embedded graphite plugs covering 20–30% of the surface
High-strength brass alloy base (CuZn25Al5Mn4Fe3)
Maintenance-free operation under moderate to high loads
High wear resistance and dimensional stability
The graphite plugs provide a continuous lubricating film, reducing friction and extending the service life of both the bushing and the mating components.
JOSG bushings are made from a high-strength brass alloy (CuZn25Al5Mn4Fe3), which is often equivalent to C86300 or other high-strength bearing brass standards.
Key Material Properties:
| Property | JOSG Bushing (CuZn25Al5Mn4Fe3) | Standard Bronze | Steel |
|---|---|---|---|
| Tensile Strength (MPa) | 450–520 | 350–450 | 500–700 |
| Hardness (HB) | 150–180 | 120–150 | 180–220 |
| Thermal Conductivity (W/m·K) | 70–90 | 50–60 | 45–60 |
| Wear Resistance | High | Medium | Medium |
| Corrosion Resistance | Excellent | Medium | Low |
| Lubricant Integration | Graphite plugs 20–30% | Requires external | Requires external |
Analysis:
The combination of high-strength brass with embedded graphite plugs ensures high load capacity, excellent wear resistance, and low friction, even in high-speed or high-temperature environments.
Brass Alloy Matrix – Provides structural strength, thermal stability, and corrosion resistance.
Graphite Plugs (20–30% Coverage) – Act as a solid lubricant, releasing a thin lubrication layer during operation.
Friction Reduction – The graphite-lubricated surface maintains a low friction coefficient (~0.05–0.12), eliminating the need for external lubrication.
Illustrative Concept:
This design ensures consistent, maintenance-free performance, reducing downtime and operational costs.
Maintenance-Free Operation
Graphite plugs provide continuous lubrication without oil or grease.
High Wear Resistance
Brass alloy matrix resists wear and deformation under repeated cycles.
Corrosion Resistance
Suitable for humid, dusty, or chemically aggressive environments.
Dimensional Stability
High-strength alloy ensures tight tolerances and precise motion for ejector systems.
Performance Comparison Table:
| Feature | Steel Bushing | Standard Bronze Bushing | JOSG Solid-Self-Lubricating Bushing |
|---|---|---|---|
| Friction Coefficient | 0.2–0.4 | 0.15–0.3 | 0.05–0.12 |
| Maintenance | High | Medium | Low |
| Max Operating Temperature | 200°C | 250°C | 300°C |
| Wear Rate | High | Medium | Low |
| Lubrication Requirement | External | External | Embedded Graphite |
| Load Capacity | Medium | Medium | High |
1. Injection Molding Machines
Ensure precise, smooth motion of ejector pins for high-quality parts.
2. Die Casting Equipment
Withstand repeated cycles and high temperatures with minimal maintenance.
3. Pressing and Stamping Machines
Provide durable, low-friction guidance for ejector rods under heavy load.
4. Automated Assembly Lines
Reduce downtime by eliminating the need for external lubrication in high-cycle systems.
Case Study Insight:
An injection molding plant replacing conventional bronze bushings with JOSG solid self-lubricating bushings reported a 35% reduction in maintenance intervals and improved dimensional consistency in molded parts.
| Selection Factor | Key Considerations |
|---|---|
| Load Capacity | Verify the maximum axial or radial load is within the brass alloy tolerance. |
| Motion Type | Linear vs. oscillating motion affects bushing selection. |
| Environment | Choose high corrosion resistance for wet or chemical exposure. |
| Temperature | Ensure graphite plugs and alloy tolerate peak operating temperatures. |
| Surface Coverage | Standard 20–30% graphite coverage is optimal for most applications. |
JOSG solid self-lubricating guide ejector bushings provide maintenance-free, high-precision, and durable performance for industrial machinery. By combining high-strength brass alloys with embedded graphite plugs, these bushings offer:
Continuous lubrication
High wear resistance
Corrosion resistance
Reduced maintenance and operational cost
These features make JOSG bushings ideal for injection molding, die casting, stamping, and automated systems, where reliable, long-lasting guidance is essential.
